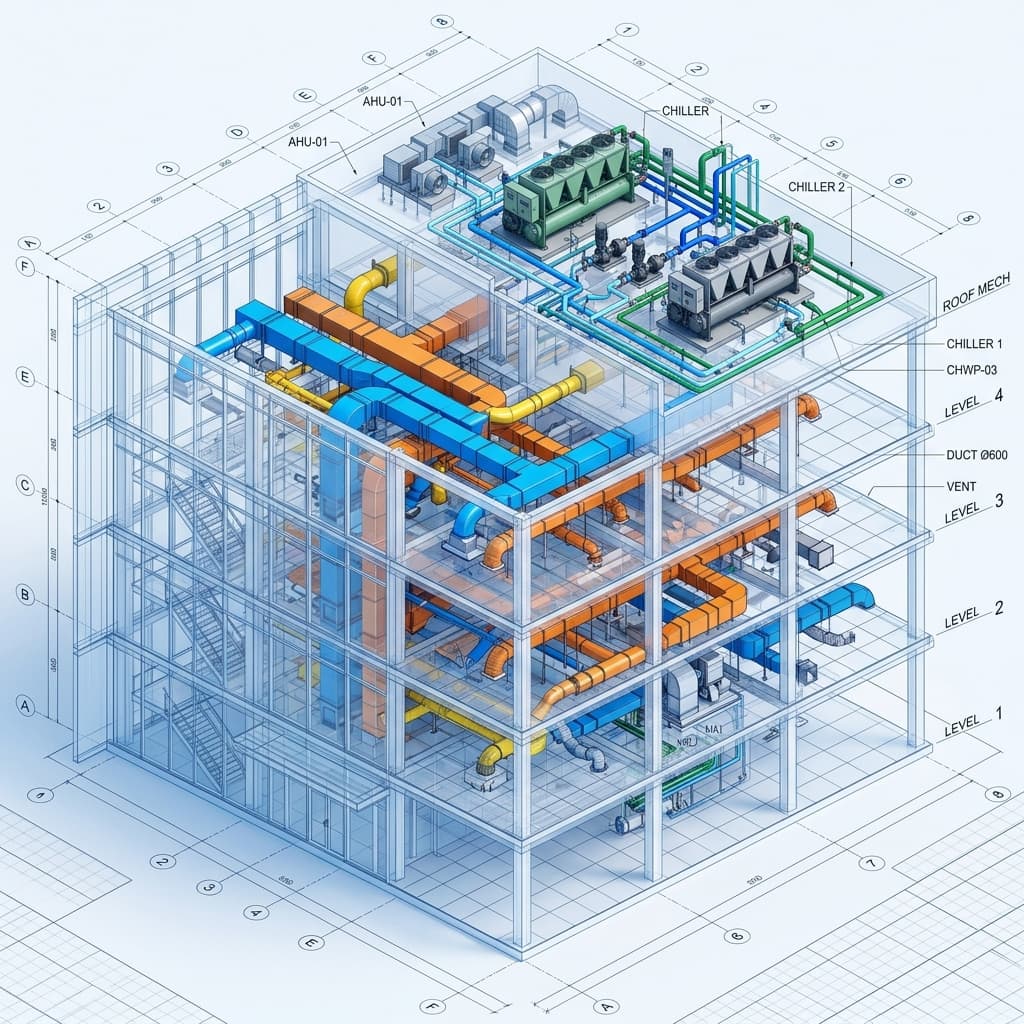

Mechanical (HVAC) Modeling
We produce detailed mechanical BIM models for HVAC systems of all scales — from small commercial fit-outs to large industrial complexes. Our models cover supply and return ductwork, air handling units, VAV boxes, chilled water and heating pipework, and all associated supports and hangers. All models are fully coordinated with structural and other MEP disciplines using Navisworks clash detection.
What's Included
Our Process
Brief & Scope
We review your project documents, drawings, and specifications to define the modeling scope and LOD requirements.
3D Modeling
Our engineers build the detailed 3D BIM model using Revit, coordinated with all other disciplines.
Clash Detection
Navisworks coordination sessions identify and resolve clashes before construction begins.
Delivery
Final model files, drawings, schedules, and reports are delivered in your required formats and standards.
Ready to get started?
Contact our team today to discuss your mechanical (hvac) modeling project requirements and get a tailored proposal.
Get a Free Quote
